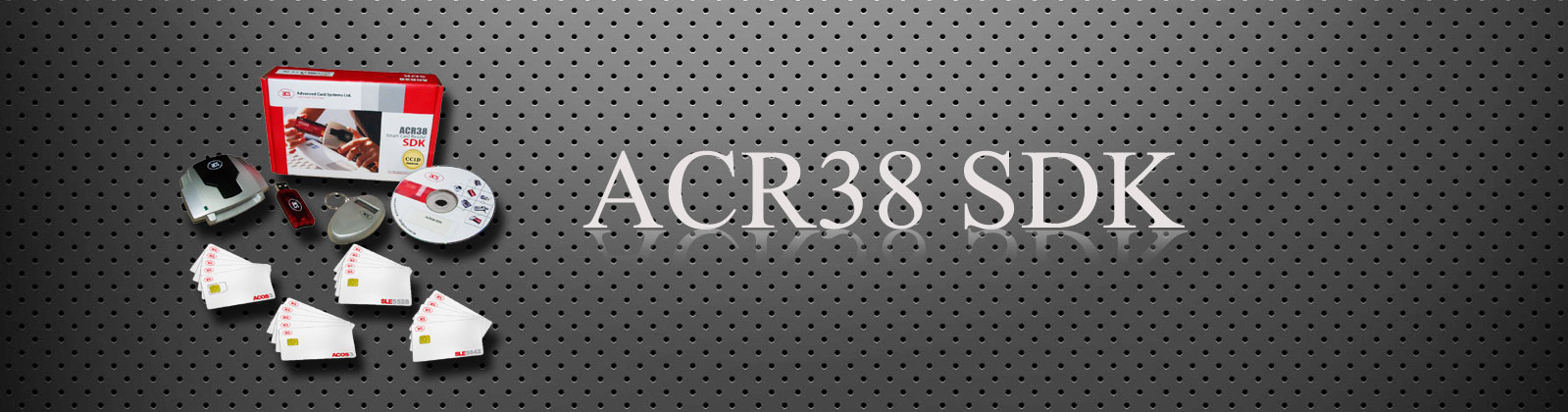

ACR38 SDK
ACOS5 (SDK)cryptographic smart card Software Development Kit
The ACR38 development kit from ACS, based on the ACR38 series of USB 2.0 readers, is a hugely popular kit offering a range of advanced products bundled together with development software and training materials. This kit provides both beginners and experienced developers with various valuable learning materials to accompany the appropriate hardware, and is aimed at giving customers great value for money.
The kit includes various drivers, source code samples, training materials and demonstration software applications on CD. Software drivers for Windows 98, Me, 2000, & XP and demo programs to showcase ACR38 features and capabilities are also included on the CD. Further supplies of all cards and readers are available from our store.
The ACR38 series readers are fully PC/SC and EMV Level 1 compliant and support all ISO 7816 microprocessor-based smartcards as well as numerous popular memory cards.
SDK contains:
The kit includes various drivers, source code samples, training materials and demonstration software applications on CD. Software drivers for Windows 98, Me, 2000, & XP and demo programs to showcase ACR38 features and capabilities are also included on the CD. Further supplies of all cards and readers are available from our store.
The ACR38 series readers are fully PC/SC and EMV Level 1 compliant and support all ISO 7816 microprocessor-based smartcards as well as numerous popular memory cards.
SDK contains:
- 1x ACR38 USB reader
- 1 x ACR38T-IBS USB SIM reader
- 10 x ACOS3 cards (5 of which have SIM-knockouts)
- 5 x SLE4428 cards
- 5 x SLE5542 cards
- 1 x balance reader
- Development CD
All these readers contain the same chip with the same specifications housed in different casings. They are single chip solutions that have been certified by EMV Level 1, FCC, CE and Microsoft WHQL. ISO 7816, EMV & PC/SC compliant.
Smart Card Reader(s)
Test Card(s)/ Token(s)
- 5 x ACOS3 Microprocessor-based Cards
- 5 x ACOS3 Microprocessor-based SIM-sized plug-in Cards
- 5 x SLE 5528 memory cards
- 5 x SLE 5542 memory cards
CD-ROM
- Demo programs
- Showcases ACR38 features and capabilities
- e.g. e-purse, logical access control, etc.
- Tools & Utilities
- PCSC CardTool - tests the protocol transfer between the reader and the PC
- PCSC Learning Tool - shows a step-by-step procedure on using the PCSC API, as well as the parameters to be used
- QuickView - checks for proper driver installation
- Script Commander PCSC - allows you to send a predefined sequence of smart card commands to your CPU card
- Sample codes
- Demonstrates basic commands used to communicate with the cards and readers
- Available in the following programming languages: MS Visual Basic .NET, MS Visual Basic .NET (x64), MS Visual C#, MS Visual C# (x64), MS Visual C++ 6.0, MS Visual C++ (x64), MS Visual Basic 6.0, Java, and Turbo Delphi 2006
- Reference Manuals
SDK Operating System Support
- Win 2000, Win XP, Win Vista, Win 7
- Win XP x64, Win Vista x64, Win 7 x64
For Product enquiry / price / availability please get in touch
Email: info@bsdinfotech.com
Mobile +91-09312289566/08588827540 / 9999152800
List of Smart Card Hardware Products
SDKs:
Readers:
- USB Dongle and Handheld Terminals
- AET63 (USB)
- ACR91 (PCMCIA Smart Card Reader)
- ACR88U
- CR88U-CL1 (With Contactless Reader)
- ACR88U-FPA (With Fingerprint Reader)
Note: ACR88U-FPA and ACR88U-CL1 do not have SDK
