C3-100/200/300
(IP-based Door Access Control Panel)
C3-100/200/300, Its an Open technology to provide management, real-time monitoring, and control of your access control system-all from a browser, with no additional software to install.
Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location. C3 series' versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features.
The C3 series control panel can communicate at 38.4 Kbps via RS-485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders. SDK (Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software.
Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location. C3 series' versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features.
The C3 series control panel can communicate at 38.4 Kbps via RS-485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders. SDK (Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software.
Key Features
- TCP/IP and RS-485 communication
- Built-in auxiliary input and output
- Advanced access control functions
- 1-door, 2-door, 4-door models
Technical Specifications
| Number of Doors Controlled | 1 Door | 2 Door | 4 Door |
| Number of Readers Supported | 2 | 4 | 4 |
| Types of Readers Supported | 26-bit Wiegand, others upon request | 26-bit Wiegand, others upon request | 26-bit Wiegand, others upon request |
| Number of Inputs | 2 (Exit Device and Door Status, AUX) | 6 (2 Exit Device, 2 Door Status, 2 AUX) | 12 (4 Exit Device, 4 Door Status, 4 AUX) |
| Number of Outputs | 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output) | 4 (2-From C Relay for Lock and 2-Form C Relay for Aux Output) | 8 (4-Form C Relay for Lock and 4-Form C Relay for Aux Output) |
| Card Holders Capacity | 30,000 | 30,000 | 30,000 |
| Log Events Capacity | 100,000 | 100,000 | 100,000 |
| Weight | 7.4lbs (3.35kg) | 7.5lbs (3.4kg) | 7.8lbs (3.55kg) |
| Communication | TCP/IP and RS-485 | TCP/IP and RS-485 | TCP/IP and RS-485 |
| Enclosure | Powder Coated Aluminium | Powder Coated Aluminium | Powder Coated Aluminium |
| Mounting | Wall Mount | Wall Mount | Wall Mount |
| Recommended Power Supply | 12V DC, 1.5A | 12V DC, 1.5A | 12V DC, 1.5A |
| Dimensions (Bundle Only) | 15in.×3.15in.×11in. 380mm(L) X 80mm(W) X 280mm(H) |
15in.×3.15in.×11in. 380mm(L)×80mm(W)×280mm(H) |
15in.×3.15in.×11in. 380mm(L)×80mm(W)×280mm(H) |
| Dimensions ( Board Only) | 6.3in.×4.17in. (160mm×106mm) |
6.3in.×4.17in. (160mm×106mm) |
6.3in.×4.17in. (160mm×106mm) |
Functions
Choice of Readers
Support full range of card readers. BSD KR-Series readers are stylish and waterproof. C3 supports any wiegand-output reader, including HID Prox, iClass, and XceedID Multi-Technology.
Support full range of card readers. BSD KR-Series readers are stylish and waterproof. C3 supports any wiegand-output reader, including HID Prox, iClass, and XceedID Multi-Technology.
Communication

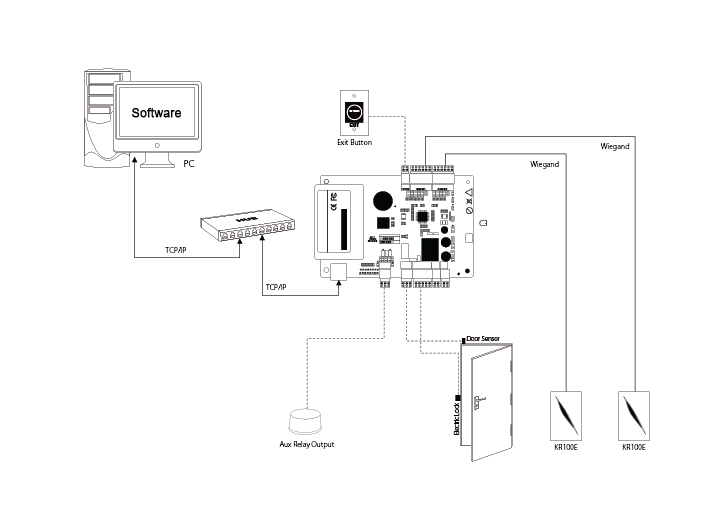

C3 controllers can be installed easily on your network and support both TCP/IP and RS-485 communications. Auto-discovery tool allows setting and modification of network parameters directly and easily.
C3 controllers can be installed easily on your network and support both TCP/IP and RS-485 communications. Auto-discovery tool allows setting and modification of network parameters directly and easily.
Total Cost of Ownership
Save cost. C3 controller firmwares can be upgraded without any advanced tools. New features can extend and expand the value of your investment.
Save cost. C3 controller firmwares can be upgraded without any advanced tools. New features can extend and expand the value of your investment.
Capacity
Support up to 30,000 badge users and store up to 100,000 events and transactions. Data is preserved if power is lost. Controller continues to operate if network connection is interrupted
Support up to 30,000 badge users and store up to 100,000 events and transactions. Data is preserved if power is lost. Controller continues to operate if network connection is interrupted
More than Door Control
Access additional control and interface. After programming, auxiliary relays can be functioned as lights, alarms and intrusion detection panels. Extra locking devices or gate controllers can be accessed.
Access additional control and interface. After programming, auxiliary relays can be functioned as lights, alarms and intrusion detection panels. Extra locking devices or gate controllers can be accessed.
Options
C3 controllers come in 3-sizes to suit project needs and reduce the cost of unused capacity.1-door, 2-door, and 4-door models can be mixed and matched in an optimized system architecture, devices or gate controllers.
C3 controllers come in 3-sizes to suit project needs and reduce the cost of unused capacity.1-door, 2-door, and 4-door models can be mixed and matched in an optimized system architecture, devices or gate controllers.
Built-In Advanced Access Control
Anti-Passback, First-Card Opening, Multi-Card Opening, Duress Password Entry, and Auxiliary Input/ Output linkages are built into controller firmware.
Anti-Passback, First-Card Opening, Multi-Card Opening, Duress Password Entry, and Auxiliary Input/ Output linkages are built into controller firmware.
For Software Developers
Free SDK is available for integrators and OEM’s to integrate the C3 controller with their or existing security or personnel management applications. Upon request, BSD can customize C3 firmware to meet any customer requirements.
Free SDK is available for integrators and OEM’s to integrate the C3 controller with their or existing security or personnel management applications. Upon request, BSD can customize C3 firmware to meet any customer requirements.
Frequently Asked Questions
The C3 series scales by door count — the C3-100 typically controls a single door, while the C3-200 and C3-300 support two and multiple/four-door configurations respectively, within the same IP-based platform.
Yes, it connects over your network (Ethernet/TCP-IP) rather than requiring dedicated RS-485 wiring back to a central controller, which usually simplifies installation in existing buildings.
The C3 panel is used with readers, exit buttons, electric locks, power supplies, protection boxes and the SRB relay box — all available from BSD Infotech.
