Turnstile Gates & Entrance Control Systems

BSD Infotech supplies and integrates turnstiles, flap barriers, swing barriers and full-height gates for controlled pedestrian entry at offices, campuses, factories, clubs, institutions and other facilities.

Choose the right entrance-control equipment based on security requirements, pedestrian flow, lane width, site conditions, identification method and integration requirements.

Request a Turnstile Quote Discuss Your Entry Requirement

Which type?Tripod Flap barrier Swing barrier P-type gate Full height Compare models Identification Price Get a quote FAQ

What Is a Turnstile Gate?

A turnstile gate is a physical pedestrian access-control barrier that regulates entry and exit, normally letting one person pass after an authentication or authorisation event, such as a valid card, fingerprint, face or QR code. It blocks everyone else. Different designs suit different sites: tripod turnstiles for controlled staff entry, flap barriers and swing barriers for lobbies and faster or wider lanes, and full-height turnstiles where stronger physical control is needed.

A complete solution, not just a gate: BSD Infotech has implemented turnstile, biometric, face recognition and UHF reader solutions across 20 institutions. At one university campus, BSD installed an FHT2300 full-height turnstile with biometric in/out management, and the university later placed a repeat order for a second turnstile with UPS backup.

Which Turnstile or Entrance Gate Is Right for Your Site?

No single type is right for every entrance. The choice depends on how much physical control you need, how many people pass at peak times, who must use the lane and where it is installed.

Type	Suited to	Physical control	Pedestrian flow (listed)	Typical environment	Accessibility	Models
Tripod turnstile	Controlled one-at-a-time staff or member entry	Waist-height barrier	25–30/min (normally open)	Offices, factories, canteens, institutions	Narrow lane; pair with a wide gate for wheelchairs and trolleys	TS2700, TS2715, TP-8000HD
Flap barrier	Busy lobbies needing quick, modern passage	Waist-height flaps with infrared lane monitoring	30–40/min	Corporate lobbies, universities, dining halls	550 mm lane	FB2000 / FB2200
Swing barrier	Wider lanes and open-looking entrances	Swinging arms with infrared lane monitoring	30–40/min	Lobbies, hospitals, campuses	600 mm standard; wider lanes customizable	SG2600 / SG2602, SG2700 / SG2702
P-type swing gate	Wide accessible lanes	Single swing arm on a compact post	Check configuration	Lobbies, healthcare, retail	900 mm customizable lane for wheelchairs and trolleys	SBG1000
Full-height turnstile	Perimeter and higher-security entry	Floor-to-ceiling rotor	Check configuration	Campus gates, factories, warehouses, stadiums	Not suitable for wheelchairs; plan a separate accessible gate	FHT2300, FHT2400, FHT2300D, FHT2400D

Not Sure Which Turnstile You Need?

Tell us your site type, number of users and entry requirements. BSD can help identify the appropriate turnstile or entrance-control configuration.

Help Me Choose

Tripod Turnstiles

A tripod turnstile is a waist-height barrier with three rotating arms that turn one step for each authorised person. It is a practical, space-efficient choice for offices, factories, campuses, canteens, clubs, institutions and other controlled staff entry. Tripod turnstiles control who passes; they are not designed to stop a determined person climbing over, which is where full-height turnstiles are used.

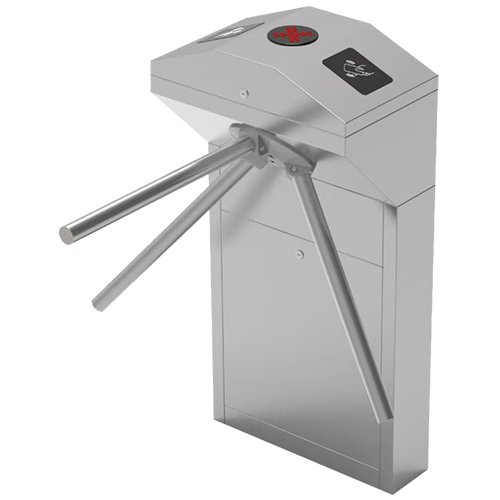

TWLD-TS2700

Tripod turnstile (semi-automatic)

A compact semi-automatic tripod turnstile for everyday staff and visitor entry. One-way or two-way operation is set on the control board; the arms drop automatically during a power failure, and the mechanism stops if an obstacle is detected.

Passage: 500 mm
Material: SS304 + acrylic
Direction: Bi-directional
Flow rate: 25–30/min (normally open); 15–20/min (normally closed)
Protection: Check configuration
Price: On request

More specifications

Dimensions	510 × 310 × 1010 mm (L × W × H)
Opening signal	Dry contact
Rated life	5 million cycles (manufacturer datasheet)
Power consumption	30–60 W
Operating temperature	−20 °C to +75 °C
Integration	Face, fingerprint, card, PIN and QR through compatible devices

Suited to: Offices, factories, canteens and staff entry

Request Price & Quote

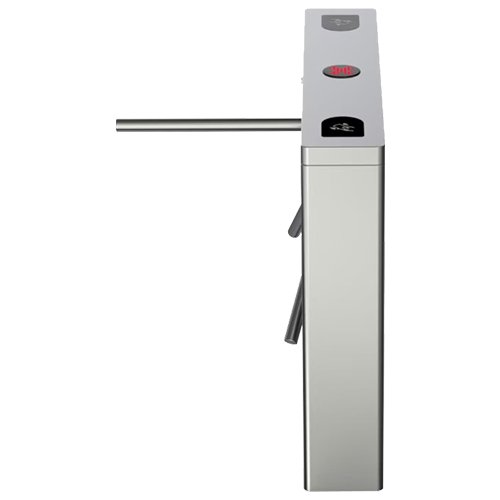

TWLD-TS2715

Bridge-type tripod turnstile

A longer bridge-type tripod cabinet with a 520 mm passage. Bi-directional or single-direction operation is configurable; during a power outage the arms lower, and they rise again when power returns. Obstacle detection stops the arms automatically.

Passage: 520 mm
Material: SS304 + acrylic
Direction: Bi-directional
Flow rate: 25–30/min (normally open); 15–20/min (normally closed)
Protection: Check configuration
Price: On request

More specifications

Dimensions	1200 × 220 × 980 mm (L × W × H)
Opening signal	Dry contact
Rated life	5 million cycles (manufacturer datasheet)
Power consumption	30–60 W
Operating temperature	−20 °C to +70 °C
Integration	Face, fingerprint, card, PIN and QR through compatible devices

Suited to: Office lobbies, institutions and staff entry

Request Price & Quote

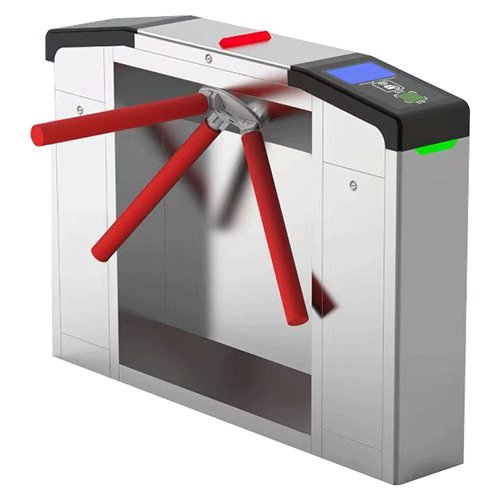

TW-TP-8000HD

Heavy-duty tripod turnstile

A heavy-duty tripod turnstile for continuous, high-traffic use. The cabinet and arms are 304 stainless steel and the drive is a DC brushless motor. It is the only tripod model here with a published IP54 rating, and is listed for indoor use or sheltered outdoor use.

Passage: Up to 550 mm
Material: 304 stainless steel (cabinet and arms)
Direction: Single direction or bi-directional
Flow rate: 25–30/min
Protection: IP54
Price: On request

More specifications

Dimensions	1400 × 250 × 1000 mm (L × W × H)
Drive	DC brushless motor
MCBF	8 million cycles
Power supply	AC 110–220 V, 50/60 Hz; standby 8 VA
Environment	Indoor, or outdoor if sheltered
LED indicator	Yes
Integration	Face, fingerprint, card, PIN and QR through compatible devices

Suited to: Factories, campuses and busy staff gates

Request Price & Quote

Flap Barriers

Retractable flap barriers give controlled pedestrian access with a more contemporary entrance appearance. The flaps open quickly after a valid authorisation and close behind the user, while infrared sensors monitor the lane. They suit corporate lobbies, offices, universities, hospitals, commercial buildings, dining halls and other high-traffic entrances. Identification devices such as face, fingerprint, card or QR readers are installed on the barrier or beside it, and connected to it.

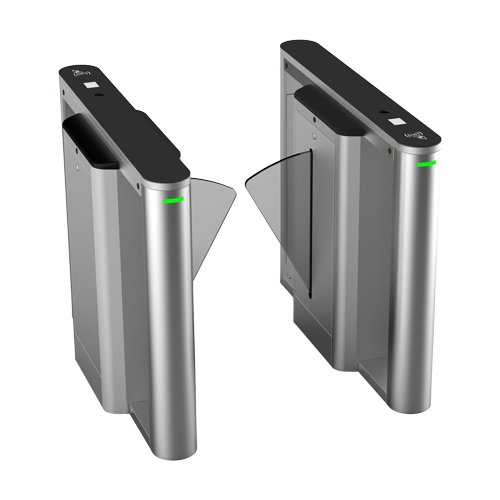

TW-FB2000 / TW-FB2200

Flap barrier

Dual retractable flaps slide into the cabinet after a valid authorisation and close quickly behind the user. Three pairs of infrared sensors watch the lane; unauthorised or wrong-direction entry raises an alarm, and access is cancelled if nobody passes within 3 seconds. In an emergency such as a power outage or fire, the flaps open for evacuation.

Passage: 550 mm
Material: SS304, tempered glass, acrylic
Direction: Bi-directional
Flow rate: 30–40/min
Protection: IP52
Lanes: TW-FB2000 main unit; TW-FB2200 lane extender for additional lanes
Price: On request

More specifications

Dimensions	1200 × 300 × 980 mm
Drive	24 V DC brushless motor
Infrared sensors	3 pairs
Power	220 V ±10%, 50 Hz; 40–70 W
Operating temperature	−15 °C to +70 °C; humidity 0–95% non-condensing
Integration	Face, fingerprint, card, PIN and QR through compatible devices

Suited to: Corporate lobbies, universities, dining halls and busy entrances

Request Price & Quote

Swing Barrier Gates

Swing barriers use swinging arms and give a wider, more open passage. They can be suitable where accessibility, luggage, trolleys or wider pedestrian movement matter, and they are often combined with tripods or flap barriers so one lane can admit wheelchairs. BSD offers two separate swing barrier families with different specifications.

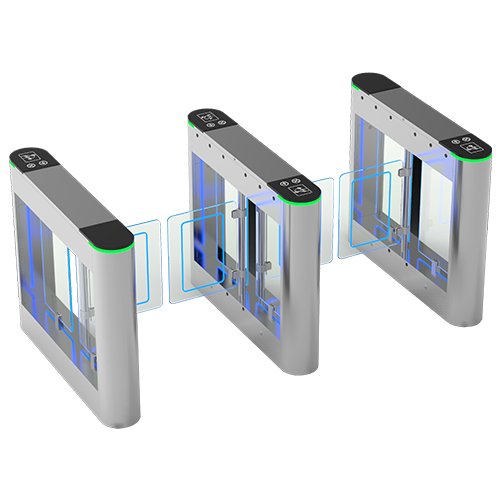

TWLD-SG2600 / TWLD-SG2602

Automatic swing barrier

A fully automatic swing barrier with a wider standard lane. It offers voice prompts, fault self-inspection, and audible and visual alarms for intrusion, tailgating and wrong-way entry. It allows one person per authorisation, and access resets if nobody passes within the set time (3 seconds by default).

Passage: 600 mm standard; up to 900 mm customizable
Material: SS304, tempered glass, acrylic
Direction: Bi-directional
Flow rate: 30–40/min
Protection: Check configuration
Price: On request

More specifications

Dimensions	1400 × 200 × 980 mm (L × W × H)
Drive	24 V brushless DC motor
Swing time	0.5–0.8 s
Sensors	6 infrared + 2 safety sensors
Power consumption	40–60 W
Installation	Listed for indoor and outdoor use; operating temperature −20 °C to +70 °C
Integration	Face, fingerprint, card, PIN and QR through compatible devices

Suited to: Accessible lanes, lobbies, hospitals and campuses

Request Price & Quote

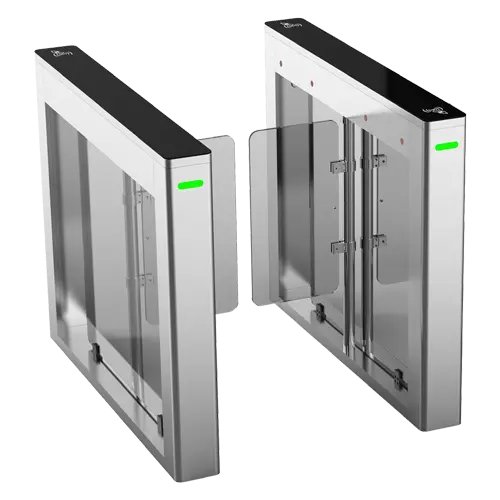

TWLD-SG2700 / TWLD-SG2702

Swing barrier (optical turnstile)

A slim optical-turnstile style swing barrier built to manage busy pedestrian traffic while detecting tailgating. The barrier opens only after authorisation, closes behind the user and raises an alarm on forced or unauthorised entry. It can be configured to open in an emergency such as a power outage or fire.

Passage: 600 mm standard; up to 950 mm customizable
Material: SS304, tempered glass, acrylic
Direction: Bi-directional
Flow rate: 30–40/min
Protection: IP45
Price: On request

More specifications

Dimensions	1200 × 150 × 980 mm (L × W × H)
Drive	DC 24 V brushless motor
Life cycle	More than 6 million
Power	220 V ±10%, 50 Hz; 40–70 W
Operating temperature	−15 °C to +70 °C; humidity 0–95% non-condensing
Integration	Face, fingerprint, card, PIN and QR through compatible devices

Suited to: Premium lobbies, offices and high-traffic entrances

Request Price & Quote

P-Type Swing Gate

A P-type (P-gate) swing gate uses a single swing arm on a compact post, which makes it easier to create a wide lane. It is especially useful for wheelchair access, trolley access, corporate lobbies, healthcare and retail. Not every project needs a P-type gate; it is typically used as the accessible lane next to other turnstiles, or where a wide lane is the main requirement.

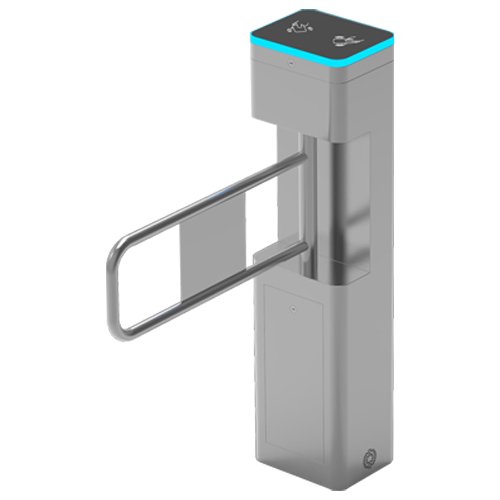

TWLD-SBG1000

P-type swing gate

A compact P-type (post-style) swing gate for wide lanes, such as wheelchair and trolley access. It has a brushless DC motor, infrared anti-tailgating and safety detection, selectable single- or bi-directional modes, an adjustable passing timeout and a fire-alarm interface. TCP/IP and dry-contact I/O connect it to readers, biometric terminals and building systems.

Passage: 562.5 mm standard; 900 mm customizable
Material: SS304, acrylic
Direction: Bi-directional (single or bi-directional selectable)
Flow rate: Check configuration
Protection: Check configuration
Price: On request

More specifications

Dimensions	250 × 200 × 980 mm (L × W × H)
Drive	24 V DC brushless motor
Life cycle	6 million
Infrared	Single-shot infrared
Interfaces	Dry contact opening signal; TCP/IP and dry-contact I/O; fire-alarm interface
Power / temperature	40–70 W; −20 °C to +70 °C
Integration	Face, fingerprint, card, PIN and QR through compatible devices

Suited to: Wheelchair and trolley lanes, lobbies, healthcare and retail

Request Price & Quote

Full-Height Turnstiles

Floor-to-ceiling rotating barriers give more physically restrictive pedestrian entry than waist-height tripod turnstiles. They are used at factories, industrial sites, campuses, warehouses, data centres, stadiums, perimeter gates and other higher-security locations. The model numbers follow a simple pattern:

Model	Lanes	Rotor
FHT2300	Single lane	3 rod
FHT2400	Single lane	4 rod
FHT2300D	Double lane	3 rod
FHT2400D	Double lane	4 rod

Full-height turnstile
Photo on request

FHT2300

Full-height turnstile — single lane, 3 rod

A single-lane, 3-rod full-height turnstile driven by a DC brushless motor. Modes are bi-directional, single-direction, always free and always locked. It has LED direction indicators and an anti-hit function that stops the rotor on contact and then resumes. Readers connect through a normally-open (NO) input.

Passage: 550 mm
Material: SS304 (AISI 304)
Direction: Bi-directional or single direction
Flow rate: Check configuration
Protection: IP44
Lanes: Single lane, 3 rod
Price: On request

More specifications

Dimensions	1400 × 1200 × 2310 mm
Rotor	3 spokes at 120°
Power	220–240 V AC input; 24 V DC operation; 30 W
Operating temperature	−25 °C to +70 °C
Duty	Heavy-duty design for 24-hour operation
Integration	Face, fingerprint, card, PIN and QR through compatible devices

Suited to: Campus and perimeter gates, factories and higher-security entry

Installed by BSD at a university campus

Request Price & Quote

Full-height turnstile
Photo on request

FHT2400

Full-height turnstile — single lane, 4 rod

The 4-rod version of the single-lane full-height turnstile. It has the same operating modes, LED direction indicators, anti-hit function and NO-input reader integration as the FHT2300.

Passage: 550 mm
Material: SS304 (AISI 304)
Direction: Bi-directional or single direction
Flow rate: Check configuration
Protection: IP44
Lanes: Single lane, 4 rod
Price: On request

More specifications

Dimensions	1400 × 1200 × 2310 mm
Rotor	4 rod
Power	220–240 V AC input; 24 V DC operation; 30 W
Operating temperature	−25 °C to +70 °C
Duty	Heavy-duty design for 24-hour operation
Integration	Face, fingerprint, card, PIN and QR through compatible devices

Suited to: Factories, warehouses and perimeter entry

Request Price & Quote

Full-height turnstile
Photo on request

FHT2300D

Full-height turnstile — double lane, 3 rod

A double-lane, 3-rod full-height turnstile. The two lanes operate independently, so entry and exit can run at the same time through one unit. It has the same operating modes, LED indicators and anti-hit function as the single-lane models.

Passage: Under 550 mm per lane
Material: Stainless steel frame
Direction: Independent in/out lanes
Flow rate: Check configuration
Protection: IP44
Lanes: Double lane, 3 rod
Price: On request

More specifications

Dimensions	2100 × 1500 × 2310 mm
Rotor	3 spokes at 120° (standard)
Power	100–240 V AC; 30 W
Operating temperature	−25 °C to +70 °C
Integration	Face, fingerprint, card, PIN and QR through compatible devices

Suited to: Busy campus gates, factory shift changes and stadium entry

Request Price & Quote

Full-height turnstile
Photo on request

FHT2400D

Full-height turnstile — double lane, 4 rod

The double-lane, 4-rod version, with independent entry and exit lanes. Its listed per-lane passage is wider than the FHT2300D.

Passage: Under 650 mm per lane (as listed)
Material: Stainless steel frame
Direction: Independent in/out lanes
Flow rate: Check configuration
Protection: IP44
Lanes: Double lane, 4 rod
Price: On request

More specifications

Dimensions	2400 × 1500 × 2310 mm
Rotor	4 rod
Power	100–240 V AC; 30 W
Operating temperature	−25 °C to +70 °C
Integration	Face, fingerprint, card, PIN and QR through compatible devices

Suited to: High-volume perimeter and industrial gates

Request Price & Quote

Full-height turnstile photos are available on request.

Vehicle Entry: Boom Barriers

This page covers pedestrian entrance control. For vehicle gates and parking, BSD can also provide boom barriers linked with UHF RFID vehicle tags, card readers or other identification devices on both sides of the gate. See RFID tags and access control solutions, or send your requirement for a vehicle-entry proposal.

Turnstile Models Compared

All specifications are as published by the manufacturer. “Check configuration” means the value is not listed for that model or depends on the configuration ordered.

Product	Type	Lane configuration	Passage width	Material	Traffic direction	Typical flow	IP rating	Integration	Suited to	Price	Enquire
TWLD-TS2700	Tripod turnstile (semi-automatic)	Check configuration	500 mm	SS304 + acrylic	Bi-directional	25–30/min (normally open); 15–20/min (normally closed)	Check configuration	Face, finger, card, PIN, QR*	Offices, factories, canteens and staff entry	On request	Enquire
TWLD-TS2715	Bridge-type tripod turnstile	Check configuration	520 mm	SS304 + acrylic	Bi-directional	25–30/min (normally open); 15–20/min (normally closed)	Check configuration	Face, finger, card, PIN, QR*	Office lobbies, institutions and staff entry	On request	Enquire
TW-TP-8000HD	Heavy-duty tripod turnstile	Check configuration	Up to 550 mm	304 stainless steel (cabinet and arms)	Single direction or bi-directional	25–30/min	IP54	Face, finger, card, PIN, QR*	Factories, campuses and busy staff gates	On request	Enquire
TW-FB2000 / TW-FB2200	Flap barrier	TW-FB2000 main unit; TW-FB2200 lane extender for additional lanes	550 mm	SS304, tempered glass, acrylic	Bi-directional	30–40/min	IP52	Face, finger, card, PIN, QR*	Corporate lobbies, universities, dining halls and busy entrances	On request	Enquire
TWLD-SG2600 / TWLD-SG2602	Automatic swing barrier	Check configuration	600 mm standard; up to 900 mm customizable	SS304, tempered glass, acrylic	Bi-directional	30–40/min	Check configuration	Face, finger, card, PIN, QR*	Accessible lanes, lobbies, hospitals and campuses	On request	Enquire
TWLD-SG2700 / TWLD-SG2702	Swing barrier (optical turnstile)	Check configuration	600 mm standard; up to 950 mm customizable	SS304, tempered glass, acrylic	Bi-directional	30–40/min	IP45	Face, finger, card, PIN, QR*	Premium lobbies, offices and high-traffic entrances	On request	Enquire
TWLD-SBG1000	P-type swing gate	Check configuration	562.5 mm standard; 900 mm customizable	SS304, acrylic	Bi-directional (single or bi-directional selectable)	Check configuration	Check configuration	Face, finger, card, PIN, QR*	Wheelchair and trolley lanes, lobbies, healthcare and retail	On request	Enquire
FHT2300	Full-height turnstile	Single lane, 3 rod	550 mm	SS304 (AISI 304)	Bi-directional or single direction	Check configuration	IP44	Face, finger, card, PIN, QR*	Campus and perimeter gates, factories and higher-security entry	On request	Enquire
FHT2400	Full-height turnstile	Single lane, 4 rod	550 mm	SS304 (AISI 304)	Bi-directional or single direction	Check configuration	IP44	Face, finger, card, PIN, QR*	Factories, warehouses and perimeter entry	On request	Enquire
FHT2300D	Full-height turnstile	Double lane, 3 rod	Under 550 mm per lane	Stainless steel frame	Independent in/out lanes	Check configuration	IP44	Face, finger, card, PIN, QR*	Busy campus gates, factory shift changes and stadium entry	On request	Enquire
FHT2400D	Full-height turnstile	Double lane, 4 rod	Under 650 mm per lane (as listed)	Stainless steel frame	Independent in/out lanes	Check configuration	IP44	Face, finger, card, PIN, QR*	High-volume perimeter and industrial gates	On request	Enquire

* Through compatible identification devices and controllers; the turnstile provides the barrier and the open signal. BSD confirms the exact configuration, availability and current price in each quotation.

Turnstiles with Biometric, RFID, NFC, QR and Face Recognition

The turnstile itself is the physical barrier. The authentication device or controller decides who is allowed through, and sends the turnstile an open signal (for example a dry-contact or NO input). Any of these methods can be used with compatible devices:

RFID & smart cards

Employee, student or member cards read at the lane. See smart cards and RFID cards.

NFC

Contactless 13.56 MHz cards or NFC credentials, where the chosen reader supports them. See contactless & NFC readers.

Fingerprint

Biometric identification with no card to lose or share. See fingerprint & biometric software.

Face recognition

Hands-free identification on a face terminal mounted at the lane, useful for busy entrances.

QR code

Visitor passes or event tickets scanned at the lane, where a QR reader is fitted.

A keypad code, usually as a backup or second factor.

No turnstile supports every technology on its own. The identification device, and its compatibility with the chosen turnstile and software, is confirmed for each project.

Turnstiles with Access Control & Software

Authentication→Access decision→Turnstile release→Passage→Event logging→Attendance / access record→Reports

The software supplied with a standalone device usually manages that device alone. For campuses and multi-gate sites, BSD Infotech provides in/out management software with one central database for all gates, re-entry rules that stop one enrolled person bringing others through, central reports, and role-based access for administrators and gate staff.

Turnstiles can also be connected with attendance, visitor management, membership, school and campus attendance, club systems, canteen access and customized software. BSD can develop or integrate software according to project requirements and compatible hardware interfaces.

Where Are Turnstiles Used?

Corporate offices

Flap or swing barriers in lobbies for employees, with a separate lane for visitors registered at reception.

Factories & industrial sites

Full-height or heavy-duty tripod turnstiles at worker gates, often linked with attendance at shift changes.

Schools & universities

Controlled campus entry and exit with RFID, smart card, biometric or face identification, connected to attendance, gate management and crowd-control software. See school attendance & crowd control.

Clubs

Member identification, membership validation, entry control, visit records and access reports, linked with BSD’s club management software.

Canteens & dining halls

Tripod turnstiles or flap barriers controlling access to canteens, messes and dining halls, combined with smart card, RFID, biometric or student/member identification. See canteen management.

Hospitals

Swing or P-type gates where wide lanes for wheelchairs and trolleys are needed alongside staff entry control.

Stadiums & events

Tripod or full-height turnstiles with ticket or QR checks for controlled crowd entry.

Warehouses & data centres

Full-height turnstiles restricting access to authorised staff at perimeter or secure-zone entrances.

Residential & institutional premises

Entry control for residents, members or staff where appropriate, with visitor lanes as required.

More Than a Turnstile — Complete Entry Control Solutions

You can buy a turnstile from BSD. BSD can also help you choose the right model, connect identification, integrate software and implement the complete entry-control system:

Requirement discussion
Site and lane assessment
Turnstile selection
Authentication selection
Controller and integration
Software
Installation
Configuration
Testing
Training
Support / AMC where applicable
Power backup (UPS) planning

Installation scope and location are confirmed for each project. For turnstile projects, BSD has included UPS units with built-in batteries so gates keep working during power cuts.

Turnstiles are one physical layer of access control. A complete solution can also include doors and locks, controllers, biometric devices, RFID, face recognition, visitor management and software. See access control solutions.

Turnstile Gate Price

Turnstile prices are not listed here, because a quotation depends on the model, lane configuration, quantity, authentication method, software, installation, site conditions, accessories, power backup and integration. Share your requirement and BSD will send a quotation with the current price for the complete solution.

Request Current Price

Request a Turnstile & Entrance Control Quote

Fill in whatever you know; nothing here is mandatory. In the next step you’ll add your name, company or institution, phone, email and requirement details.

Turnstile Gate FAQs

A turnstile gate is a physical pedestrian barrier that lets people through one at a time after they are identified or authorised, and blocks everyone else. Common designs are tripod turnstiles, flap barriers, swing barriers and full-height turnstiles.

A tripod turnstile is waist-high, with three rotating arms, and suits controlled staff entry indoors. A full-height turnstile is a floor-to-ceiling rotor that is much harder to climb over or pass under, so it is used at perimeter, campus and industrial gates where stronger physical control is needed.

A flap barrier has retractable flaps that open after a valid authorisation and close behind the user. The TW-FB2000 has a 550 mm passage, three pairs of infrared sensors, a listed flow rate of 30–40 people per minute and IP52 protection.

A swing barrier uses swinging glass or acrylic arms and usually provides a wider lane. The TWLD-SG2600/SG2602 and TWLD-SG2700/SG2702 have a 600 mm standard passage, customizable up to 900 mm and 950 mm respectively.

A full-height turnstile is a floor-to-ceiling rotating barrier. The FHT2300 and FHT2400 are single-lane models with 3 and 4 rods respectively; FHT2300D and FHT2400D are double-lane versions with independent entry and exit lanes.

Factories often use full-height turnstiles at perimeter gates, or heavy-duty tripod turnstiles such as the TW-TP-8000HD at internal gates. The choice depends on shift size, security level and whether the gate is indoors or outdoors.

Campus gates commonly use full-height or tripod turnstiles, while lobbies and dining halls may use flap or swing barriers. BSD has installed an FHT2300 full-height turnstile with biometric in/out management at a university campus.

Clubs usually prefer flap or swing barriers for a welcoming entrance, or tripod turnstiles for controlled areas. Entry can be linked with membership validation and visit records.

Yes, when a compatible fingerprint or face device controls the turnstile and the attendance software records each entry. The turnstile is the barrier; the biometric device and software provide identification and attendance.

Yes. A compatible RFID or smart card reader sends an open signal to the turnstile after a valid card is presented. The card type and reader are chosen for the project.

Yes, when a compatible face recognition terminal is mounted at the lane and connected to the turnstile. Face, fingerprint, card, PIN and QR integration is listed for these models through compatible devices.

It depends on the model and mode. The listed rate is 25–30 people per minute for the tripod turnstiles in normally-open mode (15–20 in normally-closed mode) and 30–40 per minute for the flap and swing barriers. Actual throughput also depends on how fast users are identified.

Price depends on the model, lane configuration, quantity, identification method, software, installation, site conditions, accessories, power backup and integration. BSD provides a current price with each quotation.

Often, yes. Many turnstiles accept a dry-contact or NO open signal from a controller, and some models (such as the TWLD-SBG1000) also list TCP/IP I/O. Compatibility with a specific existing system is confirmed for each project, and BSD can develop the integration where needed.

Yes. BSD handles model selection, identification devices, software and integration, installation, configuration, testing, training and support. The installation scope and location are confirmed for each project.

Plan Your Entrance Control Project with BSD

From a single tripod turnstile to multi-lane campus gates with biometric identification and central software, share your requirement and BSD will recommend a configuration and send a current quotation.

Request a Turnstile Quote Request a Site Assessment

Need a quote or advice on Turnstile Gates & Entrance Control Systems?

Tell us your requirement. BSD Infotech can recommend the right hardware and software, and quote for the complete solution.

Request a Quote Call 09312 289566
