Fingerprint Readers and USB Fingerprint Scanners
Fingerprint capture hardware for your software: identification, verification, attendance and access.
A USB fingerprint scanner captures a fingerprint and passes it to software on a computer. BSD Infotech supplies HID DigitalPersona fingerprint readers, led by the U.are.U 4500, and helps integrate them with your application.
Talk to BSD Infotech
Tell us your application, your software and how many scanners you need. We will suggest a scanner and confirm price and availability.
What Is a Fingerprint Reader?
USB Fingerprint Scanners
A USB fingerprint scanner plugs into a PC or laptop and is driven by the manufacturer’s driver and SDK. It suits applications where your own software, or software from BSD Infotech, handles enrolment, matching and records — rather than a self-contained attendance machine on a wall.
Current Fingerprint Scanner Range
Fingerprint scanners listed in BSD Infotech’s catalogue. Where no price is shown, contact us for current price and availability.

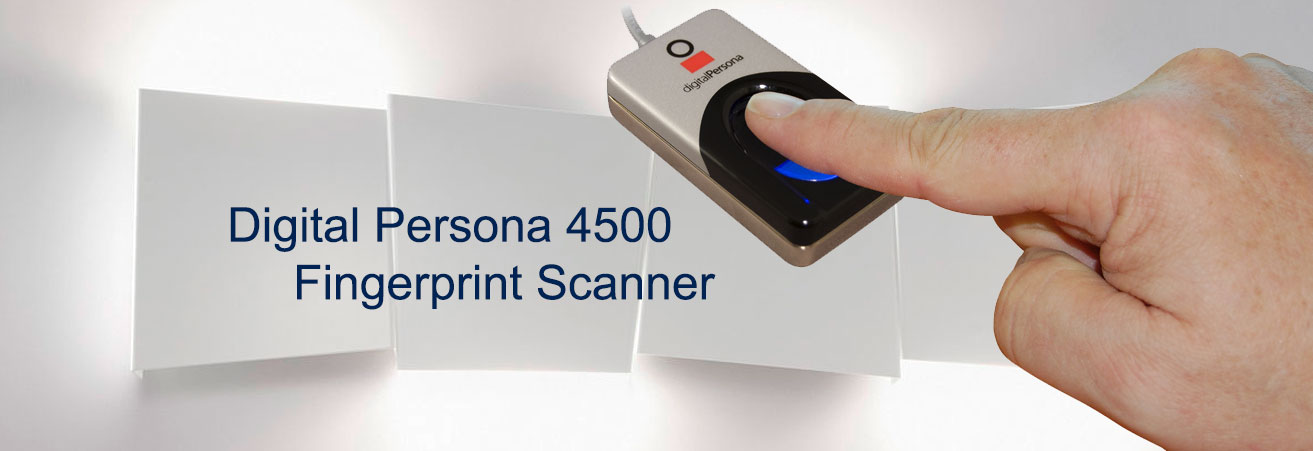

HID DigitalPersona U.are.U 4500
HID DigitalPersona USB fingerprint reader: optical sensor, 500 ppi, 15 × 18 mm capture area. Supported on Microsoft Windows (32-bit and 64-bit).
₹5,400 + GST (freight extra)
Also available: the DigitalPersona 4500 UID edition.
Fingerprint Scanner Comparison
| Scanner | Interface | Sensor | Resolution | UIDAI level | BSD price |
|---|---|---|---|---|---|
| Digital Persona 4500 | USB | Optical | 500 ppi | — | ₹5,400 + GST |
“—” means not stated in the information we have published. Confirm the exact model version, SDK and driver for your project before ordering.
More fingerprint scanners — availability to confirm
Other HID DigitalPersona models: U.are.U 5100 and U.are.U 5160; contact us to confirm availability. Models BSD Infotech no longer supplies, each with its recommended alternative: SecuGen Hamster Plus, SecuGen Hamster IV, Futronic FS80, Futronic FS88, Startek FM220, Morpho 1300E, 3M Cogent CSD 200 and Green Bit DactyScan.
L0 and L1 Fingerprint Devices
L0 and L1 are UIDAI registered-device security levels used for Aadhaar authentication in India. With an L0 device, the fingerprint data is encrypted and signed by software on the host computer. With an L1 device, encryption and signing happen inside the scanner, so the fingerprint data is protected before it leaves the device. UIDAI has moved Aadhaar authentication to L1 devices. BSD Infotech does not currently supply L1 (Aadhaar) devices, and the DigitalPersona 4500 is not UIDAI certified.
Fingerprint Reader vs Attendance Machine
USB fingerprint scanner (this page)
A peripheral connected to a computer. Your software handles enrolment, matching and records, so it suits custom applications, verification at a desk and integration projects.
Fingerprint attendance machine
A self-contained terminal, usually wall-mounted, that stores users and punches itself. See biometric solutions and biometric / fingerprint solutions.
SDK and Software Integration
An SDK (software development kit) is the set of drivers, libraries and sample code a developer uses to capture fingerprints from the scanner and match them in an application. Each scanner is used through its manufacturer’s driver and SDK, so confirm the SDK for your chosen model and operating system. BSD Infotech also develops fingerprint and biometric software and integrates scanners with existing applications.
Integrating a fingerprint scanner?
Tell us your application and platform, and we will advise on a scanner and SDK.
Applications
Fingerprint scanners are used in applications such as:
These are typical uses of fingerprint scanners, not BSD project references.
How to Choose a Fingerprint Scanner
Aadhaar authentication
Needs a UIDAI L1 device. BSD Infotech does not currently supply L1 devices; the DigitalPersona 4500 is not UIDAI certified.
Windows software integration
The Digital Persona U.are.U 4500 is a USB scanner supported on 32-bit and 64-bit Windows, with a listed BSD price.
Your software’s SDK
If your software already supports a particular scanner or SDK, choose that model to avoid rework.
Stand-alone attendance
If you do not need a PC, an attendance machine may suit you better than a USB scanner.
Smart Card and Fingerprint Readers (Previous Models)
ACS also made readers that combine a smart card reader with a fingerprint sensor: the AET60 BioCARDKey, AET63 BioTRUSTKey and AET65. These are previous-generation products; ACS lists the AET62, AET63 and AET65 as end of life. Contact BSD Infotech for current alternatives.
Frequently Asked Questions
Need Fingerprint Scanners?
Tell us your application, your software and the quantity. We will recommend a scanner and confirm price and availability.
