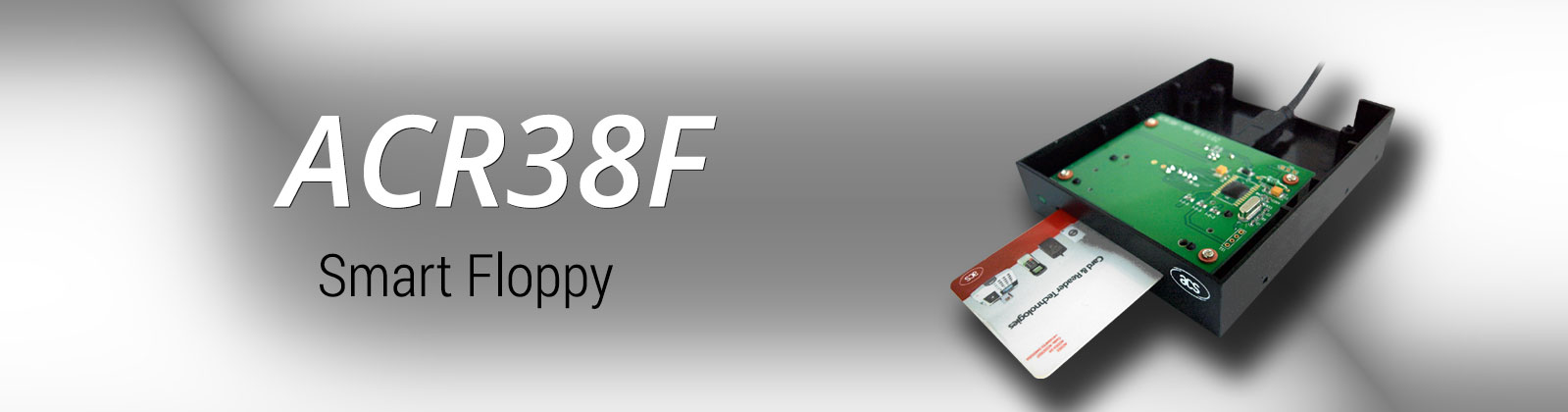

ACR38F Smart Floppy

Overview

The ACR38F Smart Floppy is the ideal solution for an easy integration of smart card readers into the desktop environment. It uses the same core as the ACR38 Smart Card Reader series, and shares the versatility and cost-efficiency that customers have always associated with ACS smart card readers. Using the USB interface, it is propelled by the PC's internal power supply, and can be configured to suit customer preferences.

Similar to ACR38, the ACR38F Smart Floppy is very user-friendly. ACR38F is PC/SC and CCID-compliant, enabling its plug-and-play feature that eliminates the need for driver installation and driver-system compatibility assessment. It is ideal for a wide variety of smart card applications such as e-Ccommerce, home banking, e-Purse facility and secured computer access.

Features

• Supports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) card
• Supports CAC (Common Access Card) *
• Supports PIV (Personal Identity Verification) Card*
• Supports microprocessor cards with T=0 or T=1 protocol
• Supports memory cards:
  • Cards following the I2C bus protocol (free memory cards), including:
  • Atmel: AT24C01 / 02 / 04 / 08 / 16 / 32 / 64 / 128 / 256 / 512 / 1024
  • SGS-Thomson: ST14C02C, ST14C04C
  • Gemplus: GFM1K, GFM2K, GFM4K, GFM8K
• Cards with intelligent 256 bytes EEPROM and write protect function, including: SLE4432, SLE4442, SLE5532, SLE5542
• Cards with intelligent 1K bytes EEPROM and write-protect function, including: SLE4418, SLE4428, SLE5518, SLE5528
• Cards with '104' type of EEPROM non-reloadable token counter cards, including: SLE4406, SLE4436, SLE5536, SLE6636
• Cards with secure memory IC with password and authentication, including: AT88SC153, AT88SC1608
• Cards with Intelligent 416-Bit EEPROM with internal PIN check, including: SLE4404
• Cards with Security Logic with Application Zone, including: AT88SC101, AT88SC102, AT88SC1003
• Supports PPS (Protocol and Parameters Selection)
• Features Short Circuit Protection
• Application Programming Interface:
  • Supports PC/SC
  • Supports CT-API (through wrapper on top of PC/SC)

Application

• e-Government
• e-Banking  and e-Payment
• e-Healthcare
• Public Key Infrastructure
• Network Security
• Access Control
• Loyalty Program

Technical Specification
