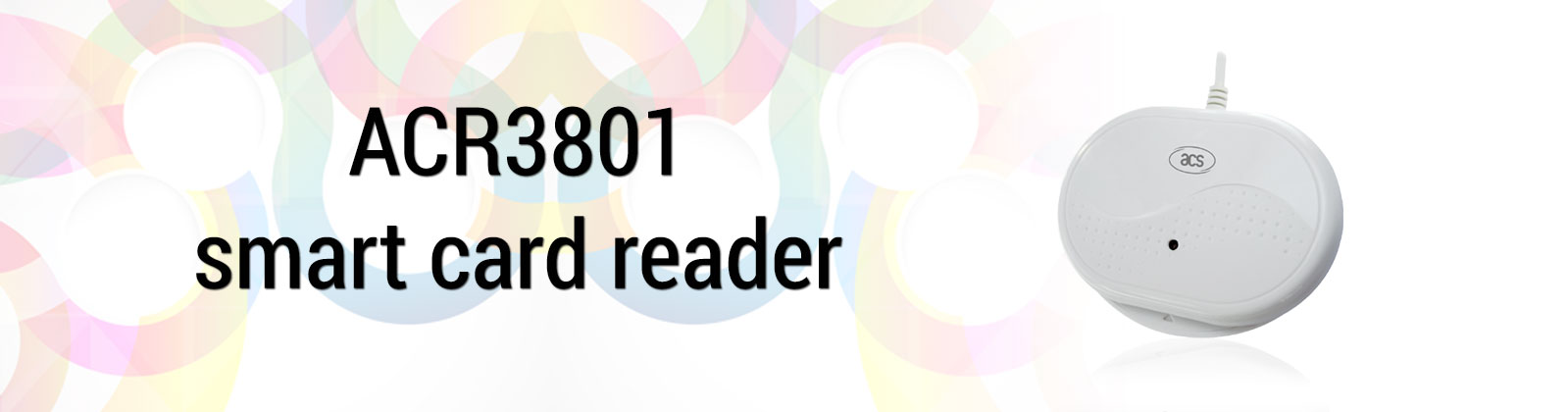

ACR3801 Smart Card Reader
Status: ACS lists the ACR3801 as end of life. This page is kept for existing users and reference. The right alternative depends on your application. Call BSD Infotech on 9312289566 / +91-8588827540 for guidance. View all smart card and RFID readers or see legacy and end-of-life readers. For current USB contact readers, see our PC-linked smart card readers.
Overview
Specifically designed to cater to the US market, <strong>ACR3801 is a FIPS 201-compliant contact smart card reader</strong> utilizing the latest technology. With an elegant design and capability to support high speed transactions, <strong>ACR3801</strong> is ideal for a broad range of smart card solutions, including <strong>Public Identity Verification (PIV)</strong>, Physical and Logical Access Control, Digital Signature, and Online Banking.
ACR3801 supports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) smart cards and microprocessor cards with T=0 and T=1 protocol. It also supports a wide variety of memory cards in the market, including the Common Access Card (CAC), a U.S. Department of Defense (DoD) smart card issued as standard identification for active DoD personnel and other non-DoD government employees.
A reader that does not compromise look for performance, ACR3801 is a heavy-duty reader built for demanding smart card operations.
Features
- Supports Common Access Card (CAC)
- Supports PIV (Personal Identity Verification) Card
- Supports ISO-7816 Class A, B and C (5V, 3V, 1.8V) cards
- Supports microprocessor cards with T=0 or T=1 protocol
- Supports memory cards:
- Cards following the I2C bus protocol (free memory cards), including:
- Atmel: AT24C01 / 02 / 04 / 08 / 16 / 32 / 64 / 128 / 256 / 512 / 1024
- SGS-Thomson: ST14C02C, ST14C04C
- Gemplus: GFM1K, GFM2K, GFM4K, GFM8K
- Cards with intelligent 256 bytes EEPROM and write protect function, including: SLE4432, SLE4442, SLE5532, SLE5542
- Cards with intelligent 1K bytes EEPROM and write-protect function, including: SLE4418, SLE4428, SLE5518, SLE5528
- Cards with '104' type of EEPROM non-reloadable token counter cards, including: SLE4406, SLE4436, SLE5536, SLE6636
- Cards with secure memory IC with password and authentication, including: AT88SC153, AT88SC1608
- Cards with Intelligent 416-Bit EEPROM with internal PIN check, including: SLE4404
- Cards with Security Logic with Application Zone, including: AT88SC101, AT88SC102, AT88SC1003
- Supports PPS (Protocol and Parameters Selection)
- Features Short Circuit Protection
- Application Programming Interface:
- Supports PC/SC
- Supports CT-API (through wrapper on top of PC/SC)
Application
- e-Government
- e-Banking and e-Payment
- e-Healthcare
- Public Key Infrastructure
- Network Security
- Access Control
- Loyalty Program
Frequently Asked Questions
It is a FIPS 201-compliant contact smart card reader specifically designed for the US market, ideal for Public Identity Verification (PIV), Physical and Logical Access Control, Digital Signature, and Online Banking applications.
It supports ISO 7816 Class A, B and C (5V, 3V, 1.8V) smart cards, microprocessor cards with T=0/T=1 protocols, a wide variety of memory cards, and the Common Access Card (CAC) used by the US Department of Defense.
EN60950/IEC 60950, ISO 7816, FIPS201, TAA, CE, FCC, PC/SC, CCID, RoHS, and Microsoft WHQL certification for Windows 2000 through Windows 8, including server editions.
Windows 98 through Windows 8 (32-bit and 64-bit), Mac, Linux, and Android 3.1 and above.
Technical Specification
Dimensions
73.0 mm (L) x 95.0 mm (W) x 19.9 mm (H)
Interface
USB 2.0 Full Speed
Supply Voltage
Regulated 5V DC
Supply Current
Max. 50mA
Operating Temperature
0-50°C
CLK Frequency
4 MHz
MTBF
500,000 hrs
Smart Card Interface Support
- CAC & PIV Smart Cards
- ISO-7816 Class A, B and C ( 5V, 3V, 1.8V )
Compliance/Certifications
- EN60950/IEC 60950, ISO 7816, FIPS201, TAA, CE, FCC, PC/SC, CCID, RoHS, USB Full Speed
- Microsoft WHQL: Windows 2000, 2003, XP, Vista, 7, 8, 2012
Operating System Support
- Win98, Win ME, Win 2000, Win 2003, Win 2003 R2, Win XP, Win Vista, Win 2008, Win 7, Win 8
- Win 2003 x64, Win 2003 R2 x64, Win XP x64, Win Vista x64, Win 2008 x64, Win 2008 R2 x64, Win 7 x64, Win 8 x64, Win Server 2012 x64
- Mac
- Linux
- Android™ 3.1 and above
Downloads
Release Date
Drivers
OS Support
Version
File Size
USB Interface
07-Nov-2012
Win 2000, Win XP, Win Vista, Win 7, Win 8, Win Server 2003, Server 2003 R2, Win Server 2008
1.0.1.0
3 MB
07-Nov-2012
MSI Installer for PC/SC Driver
Win XP x64, Win Vista x64, Win 7 x64, Win 8 x64, Win Server 2003 x64, Win Server 2003 R2 x64, Win Server 2008 x64, Win Server 2008 R2 x64, Win Server 2012 x64
1.0.1.0
1 MB
07-Nov-2012
Win98, Win ME, Win 2000, Win XP, Win XP x64, Win Vista, Win Vista x64, Win 7, Win 7 x64, Win 8, Win 8 x64, Win Server 2003, Win Server 2003 x64, Win Server 2003 R2, Win Server 2003 R2 x64, Win Server 2008, Win Server 2008 x64, Win Server 2008 R2 x64, Win Server 2012 x64
1.0.1.0
7 MB
10-Jul-2012
PC/SC Driver Package
Linux
1.0.4
2 MB
12-Sep-2011
Win 2000, Win XP, Win XP x64, Win Vista, Win Vista x64, Win 7, Win 7 x64, Win 8, Win 8 x64, Win Server 2003, Win Server 2003 x64, Win Server 2003 R2, Win Server 2003 R2 x64, Win Server 2008, Win Server 2008 x64, Win Server 2008 R2 x64, Win Server 2012 x64
1.0.0.1
2 MB
