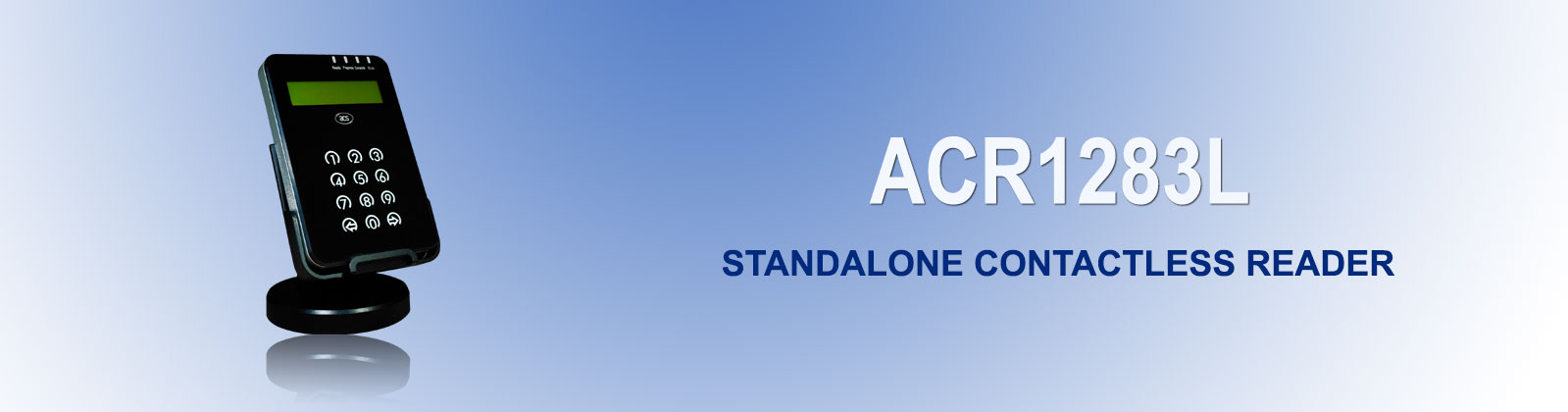

ACR1283L Standalone Contactless Reader
Overview
As contactless smart card technology becomes widely accepted in the market, integration of different components in a single device offers security and convenience sought after in many applications.
The ACR1283L is a cost-effective and powerful contactless smart card reader designed to operate in standalone mode to cater to a wide range of contactless card applications. It comes with four built-in SAM slots, making it suitable for applications that have multiple card issues or different security requirements. ACR1283L enriches user interaction with its two-line graphic LCD, four LEDs, buzzer to clearly display application and card operation status, and a twelve-key capacitive touch keypad for user input. In addition to its standalone operation, The ACR1283L also supports PC-linked operation for typical contactless PC/SC host applications.
With its high speed 32-bit MCU and strong antenna performance, ACR1283L is ready for highly secure and highly demanding applications where speed and security are essential, such as payment and government applications. An all-in-one, cost-effective and powerful terminal designed to provide greater flexibility and convenience, ACR1283L is the smart choice for your smart card applications!
Features
- ARM 32-bit CortexTM-M3 Processor
- Dual Operation Modes:
- PC-linked
- Standalone
- PC-linked Operation:
- USB 2.0 Full Speed Interface
- CCID Compliance
- Supports PC/SC
- Supports CT-API (through wrapper on top of PC/SC)
- Standalone Operation:
- Support for third-party application programming
- Over 400 KB memory space for third-party application
- Over 500 KB memory space for data storage
- Supported development platforn:
- IAR Embedded Workbench, Version 5.50 or above
- CoIDE(GCC), Version 1.3.0 or above
- Smart Card Reader:
- Read/Write speed of up to 848 kbps
- Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
- Support for ISO 14443 Part 4 Type A and B and Mifare series
- Built-in anti-collision feature (only one tag is accessed at any time)
- Four ISO 7816 compliant SAM slots
- Built-in Peripherals:
- Two-line graphic LCD
- Four user-controllable LEDs
- User-controllable buzzer
- Twelve-key capacitive touch keypad
- Real-time clock (RTC) with independent back up battery
- In-device AES (128 and 256), DES and 3DES encryption
- USB Firmware Upgradability
Application
- e-Government
- e-Banking and e-Payment
- e-Healthcare
- Transportation
- Network Security
- Access Control
- Automatic Fare Collection
- Public Transportation Terminal
- Loyalty Program
Technical Specification
With Stand: 158.0 mm (L) x 95.00 mm (W) x 95.0 mm (H)
With Stand: 420 g
Smart Card Interface Support
- ISO 14443 Type A & B
- Mifare
Compliance/Certifications
- ISO 14443, CE, FCC, PC/SC, CCID, RoHS, USB Full Speed
- Microsoft® WHQL 2000, XP, Vista, 7
Operating System Support
- Win 2000, Win XP, Win Vista, Win 7, Win Server 2003, Win Server 2008
- Win XP x64, Win Vista x64, Win 7 x64, Win Server 2003 x64, Win Server 2008 x64, Win Server 2008 R2 x64
- Linux
- Mac
- AndroidTM 3.1 and above
