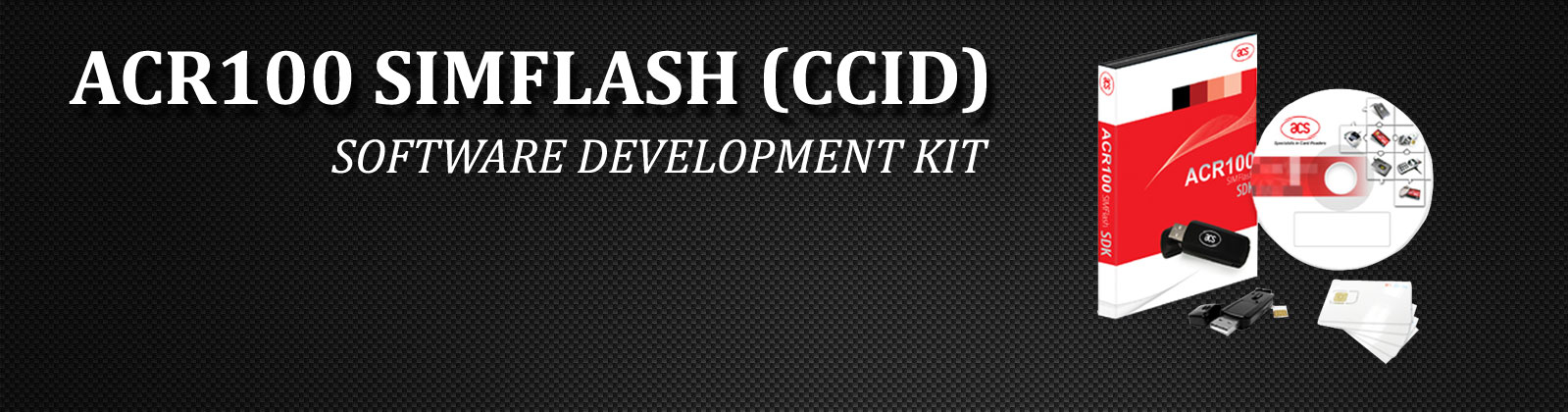

ACR100 SIMflash (CCID) Software Development Kit
Status: ACS lists the ACR100 as end of life. This page is kept for existing users and reference. The right alternative depends on your application. Call BSD Infotech on 9312289566 / +91-8588827540 for guidance. View all smart card and RFID readers or see legacy and end-of-life readers.
-softwaredevelopmet-kit.jpg "ACR100 SIMflash (CCID) Software Development Kit")
Overview
The ACR100 SIMflash (CCID) Software Development Kit (SDK) enables you to efficiently develop new applications and systems, as well as incorporate ACR100’s combined smart card reader and mass storage functionalities into existing applications. Included in the package are sample cards, sample codes, tools and utilities, demo applications, freeware disk partitioning tools, and reference materials that allow for an easy development of applications using the ACR100 SIMFlash CCID.
ACR 100F SDK Contents
Smart Card Reader(s)
- 1 x ACR100 SIMFlash (CCID)
Test Card(s)/ Token(s)
- 5 x ACOS3 Microprocessor SIM-sized Smart Cards
CD-ROM
- Demo Programs
- Illustrates the versatility of the ACR100 SIMFlash (CCID) smart card reader
- Tools & Utilities
- Card Tool
- Tests the protocol transfer between the reader and the PC
- PCSC Learning Tool
- Enhances your knowledge in showing you how to use the PCSC API's step-by-step and what parameter to use
- QuickView
- Checks for proper driver installation
- Scripting Tool
- Allows you to send a predefined sequence of smart card commands to your CPU cards
- Card Tool
- Sample codes
- Demonstrates basic commands used to communicate between readers and cards
- MS Visual Basic .NET, MS Visual Basic .NET (x64), MS Visual C#, MS Visual C# (x64), MS Visual C++ 6.0, MS Visual C++ (x64), MS Visual Basic 6.0, Java, and Turbo Delphi 2006
- Freeware
- Freeware disk partitioning tools Format.exe and Lock.exe let you try partitioning the flash drive into public and security areas. To download freeware disk partitioning tools online, please click here
- Smart Card Reader Driver(s)
- Reference Manual(s)
SDK Operating System Support
- Win 2000, Win XP, Win Vista, Win 7
- Win XP x64, Win Vista x64, Win 7 x64
Frequently Asked Questions
It enables you to efficiently develop new applications and systems, and to incorporate the ACR100's combined smart card reader and mass storage functionalities into existing applications.
The kit includes an ACR100 SIMFlash (CCID) reader, 5 ACOS3 Microprocessor SIM-sized smart cards, demo programs, tools & utilities (Card Tool, PCSC Learning Tool, QuickView, Scripting Tool), sample codes, freeware disk partitioning tools, reader drivers and reference manuals.
Sample codes are provided in MS Visual Basic .NET, MS Visual Basic .NET (x64), MS Visual C#, MS Visual C# (x64), MS Visual C++ 6.0, MS Visual C++ (x64), MS Visual Basic 6.0, Java, and Turbo Delphi 2006.
It supports Windows 2000, XP, Vista and 7, including the x64 versions of XP, Vista and 7.
