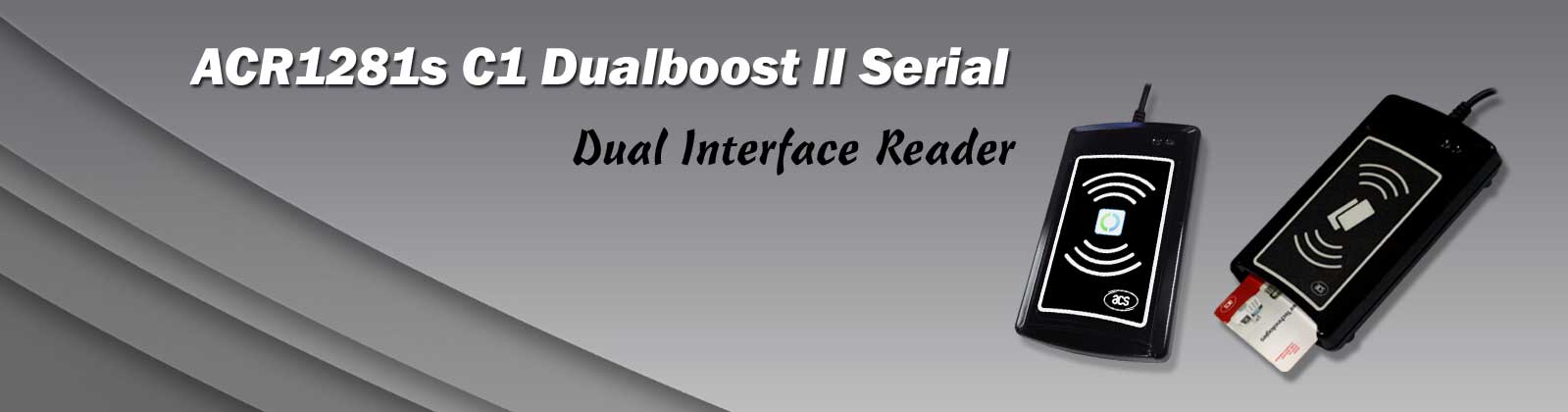

ACR 128 Smart Card Reader

The ACR 128, model ACR1281S-C1 DualBoost II, is a dual interface reader that can access any contact and contactless smart cards following the ISO 7816 and ISO 14443 standards. ACR1281S-C1 DualBoost II integrates conventionally separate and independent applications for contact and contactless technologies into one device and one card. It can be used for banking or e-commerce to settle payments or other transactions securely using credit cards. It can also be used to verify contactless cards to provide access to specific areas or workstations. It is the perfect complement to the all-in-one card concept that combines many kinds of smart card applications into just a single card. Its RS232 serial interface can accommodate more devices, such as POS terminals and vending machines, which have different serial ports.

The ACR1281S-C1 is a plug-and-play device that does not require any driver installation. It comes with a built-in SAM slot for added security in both contact and contactless applications. Lastly, the ACR1281S-C1 makes use of high-speed communication for contactless cards at a maximum of 848 kbps, which makes it suitable for highly demanding applications.

With additional features such as USB firmware upgradability, contact memory card support and extended APDU support, ACR1281S-C1 Serial DualBoost II is a highly cost-effective, powerful, all-in-one device that offers convenience and flexibility to many smart card applications.

Features

  • Serial RS232 Interface
  • USB interface for power supply
  • CCID-like frame format (binary format)
  • Contactless Smart Card Reader:
    • Read/write speed of up to 848 kbps
    • uilt-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
    • Supports ISO 14443 Part 4 Type A and B cards and Mifare series
    • Built-in anti-collision feature (only one tag is accessed at any time)
    • Supports extended APDU (max. 64 kbytes)
  • Contact Smart Card Reader:
    • Supports ISO 7816 Class A, B and C (5 V, 3V and 1.8 V)
    • Supports microprocessor cards with T=0 or T=1 protocol
    • Supports memory cards
    • ISO 7816 compliant SAM slot
  • Built-in Peripherals:
    • Two user-controllable LEDs
    • User-controllable buzzer
  • USB Firmware Upgradability

Application

  • e-Government
  • e-Banking  and e-Payment
  • e-Healthcare
  • Transportation
  • Network Security
  • Access Control
  • Automatic Fare Collection
  • Public Transportation Terminal
  • Loyalty Program

Technical Specification

Dimensions
120.5 mm (L) x 72.0 mm (W) x 20.4 mm (H)
Weight
150g
Interface

RS232 for data communication
USB for power transmission
Operating Distance
Up to 50 mm (depends on the tag type)
Supply Voltage
Regulated 5 V DC
Supply Current
200mA
Operating Temperature
0-50°C
Operating Frequency
13.56 MHz

Smart Card Interface Support





  • Contact
    • ISO 7816 Class A, B and C (5V, 3V, 1.8V)
  • Contactless
    • ISO 14443 Type A & B
    • Mifare

Compliance/Certifications

  • CE, FCC, RoHS Compliant

Operating System Support




  • Windows 2000, XP, Vista, 7, Server 2003, Server 2008, Server 2008 R2
  • Win XP x64, Win Vista x64, Win 7 x64, Win Server 2003 x64, Win Server 2008 x64, Win Server 2008 R2 x64
  • Linux
Release Date
Drivers
OS Support
Version
File Size
Serial Interface
04-Aug-2011
Win 2000, Win XP, Win XP x64, Win Vista, Win Vista x64, Win 7, Win 7 x64, Win Server 2003, Win Server 2003 x64, Win Server 2008, Win Server 2008 x64, Win Server 2008 R2 x64
1.0.0.1
107 KB
04-Aug-2011
Linux
1.0.0
97 KB

Frequently Asked Questions

The ACR 128, model ACR1281S-C1 DualBoost II, is a dual interface reader that supports both contact and contactless smart cards on the ISO 7816 and ISO 14443 standards in a single device.
No, it's a plug-and-play device with a built-in SAM slot for added security, and no driver installation is required.
It's used for banking and e-commerce payments, access control, and applications that combine multiple smart card technologies into a single all-in-one card, with an RS232 serial interface for integration into POS terminals and vending machines.
